詮鼎集團代理的Kingston Solutions Inc. (KSI) Focus在Embedded Memory系列產品從設計、開發、生產到販賣,包含:eMMC Flash、Mobile DRAM、MCP。KSI的誕生結合美商金士頓科技在memory市場品牌通路以及全球采購優勢,且結合群聯科技在controller know how技術、專利。并結合MCP專業封測廠:力成科技構成完整的生產鏈。eMMC Flash產品設計開發以及生產制造基地都在***,營銷服務策略上KSI可以實時提供亞洲客戶:Stable supply、On-site service and Product flexibility。
多種產品可以應用于Mobile Phone and other Handheld Devices、.Portable Media Players(MP3,Video/Photo)、Digital Still and Video Cameras、PMP, PND、Tablet PC
?
?
?

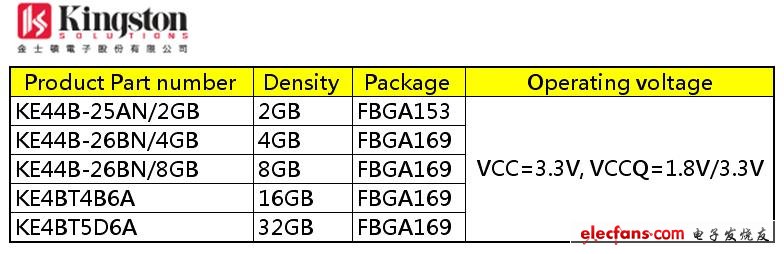

產品規格 :

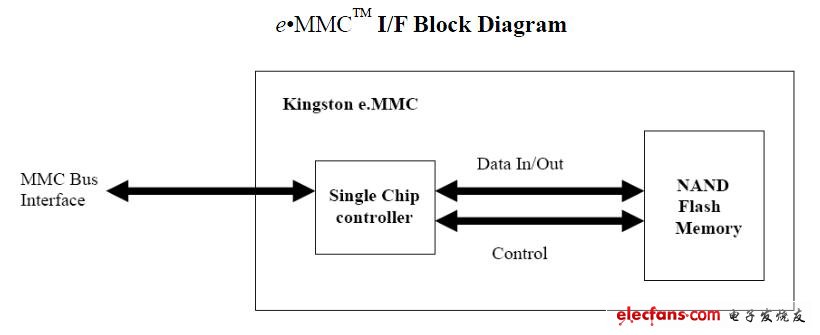

Packaged NAND flash memory with e?MMCTM 4.41 interface
2, 4,8,16 and 32 Gbytes of data storage
Compliant with e?MMCTM Specification Ver 4.41
Full backward compatibility with previous e?MMCTM Ver4.3 system specification
Bus mode
High-speed MultiMediaCard protocol
Provide variable clock frequencies of 0-20 MHz, 0-26 MHz (default) , 0-52MHz(high Speed)
Support three different data bus widths :1 bit, 4 bits, 8 bits
Data transfer rate: up to 52Mbyte/s (using 8 parallel data lines at 52 MHz)
Operating voltage range :
VCCQ = 1.8 V/3.3 V
VCC = 3.3 V
Operating temperature range: –25C° to +85C°
System Performance
Multiple block read (x8 at 52MHz) : up to 28Mbyte/s
Multiple block write (x8 at 52MHz) : up to 14Mbyte/s
Package :
11.5mmx 13mm x 1.2mm (2GB)
12mmx 16mm x 1.2mm (4GB, 8GB, 16GB)
14mmx 18mm x 1.4mm (32GB)
產品特性:
Support (Alternate) Boot Operation Mode to provide a simple boot sequence method
Host initiated explicit sleep mode for power saving
Enhanced Write Protection with Permanent and Partial protection options
Support Background Operations & High Priority Interrupt (HPI)
Support enhanced storage media feature for better reliability
Error free memory access
Internal error correction code (ECC) to protect data communication
Internal enhanced data management algorithm
Solid protection of sudden power failure safe-operations for data content
Security
Support secure erase, secure trim and secure bad block erase commands
Enhanced write Protection with permanent and partial protection options
