ADI公司的ADHV4702-1是高壓（220V）一增益穩定精密運算放大器，具有高輸入阻抗和低輸入偏壓電流，低輸入失調電壓，低漂移和低噪音，對稱工作電壓±110 V，不對稱單源工作電壓220V，開環增益（AOL）170dB，共模抑制比（CMRR）160dB，最大事端失調電壓（VOS） 2 μV/℃，輸入噪音8 nV/√Hz ，主要用在高邊電流檢測，自動測試設備，高壓驅動器，壓電傳感器以及數模轉換器（DAC）輸出緩沖器。本文介紹了ADHV4702-1主要特性，功能框圖以及評估板EVAL-ADHV4702-1CPZ主要特性，電路圖和材料清單。

The ADHV4702-1 is a high voltage （220 V）， unity-gain stable precision operational amplifier. The ADHV4702-1 offers high input impedance with low input bias current， low input offset voltage， low drift， and low noise for precision demanding applications. The next generation of proprietary semiconductor processes and innovative architecture from Analog Devices， Inc.， enable this precision operational amplifier to operate from symmetrical dual supplies of ±110 V， asymmetrical dual supplies， or a single supply of 220 V.

For precision performance， the ADHV4702-1 has a 170 dB typical open-loop gain （AOL） and a 160 dB typical common-mode rejection ratio （CMRR）， as shown in Figure 2. The ADHV4702-1 also has a 2 μV/℃ maximum input offset voltage （VOS） drift and an 8 nV/√Hz input voltage noise.

The exceptional dc precision of the ADHV4702-1 is complemented by excellent dynamic performance with a small signal bandwidth of 10 MHz and a slew rate of 74 V/μs. The ADHV4702-1 has an output current of 20 mA typical.

The ADHV4702-1 offers high voltage input common-mode swing as well as high voltage output swing， enabling precision high voltage use cases such as high-side current sensing. The ADHV4702-1 is also ideally suited for forcing a voltage in precision bias and control applications.

The ADHV4702-1 is available in a 12-lead， 7 mm × 7 mm lead frame chip scale package （LFCSP） with an exposed pad （EPAD） compliant to international electrotechnical commission （IEC） 61010-1 creepage and clearance standards. The copper EPAD provides a low thermal resistance path to improve heat dissipation and features high voltage isolation， allowing it to be safely connected to a 0 V ground plane regardless of VCC or VEE voltages. The ADHV4702-1 operates over the ?40℃ to +85℃ industrial temperature range.

ADHV4702-1主要特性：

Wide range of operating voltages

Dual-supply： ±12 V to ±110 V

Asymmetrical supply operation： 24 V to 220 V

Wide input common-mode voltage range： 3 V from rails

High common-mode rejection ratio： 160 dB typical

High AOL： 170 dB typical

High slew rate

74 V/μs typical

24 V/μs typical with external input clamping diodes

Low input bias current： 2 pA maximum

Low input offset voltage： 1 mV maximum

Low input offset voltage drift： 2 μV/℃ maximum

Low input voltage noise： 8 nV/√Hz typical at 10 kHz

Wide small signal bandwidth： 10 MHz typical

Resistor adjustable quiescent current： 0.6 mA to 3 mA （VS = ±110 V）

Unity-gain stable

Thermal monitoring

Small footprint： 12-lead， 7 mm × 7 mm LFCSP compliant with IEC 61010-1 spacing

Shutdown mode

ADHV4702-1應用：

High-side current sensing

Automated test equipment

High voltage drivers

Piezotransducers

Digital-to-analog converter （DAC） output buffers

Light detecting and ranging （LiDAR）， avalanche photodiode （APD）， single photon avalanche diode （SPAD） biasing

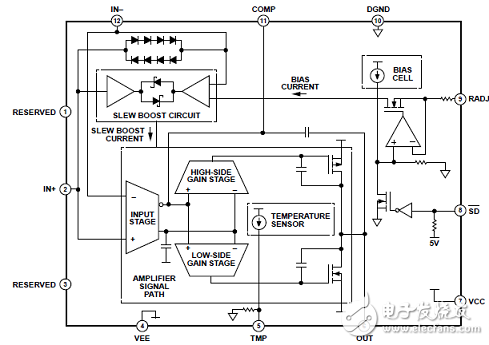

圖1.ADHV4702-1功能框圖

評估板EVAL-ADHV4702-1CPZ

This user guide describes the EVAL-ADHV4702-1CPZ evalua-tion board， which helps users evaluate the ADHV4702-1 offered in a 7 mm × 7 mm， 12-lead lead frame chip scale package （LFCSP） with an exposed pad at the bottom. The evaluation board provides a platform for quick and easy evaluation of the ADHV4702-1. Figure 1 shows the top side of the evaluation board. Figure 2 shows the bottom side of the board with the large exposed copper area for attaching a heat sink to provide additional thermal management.

The evaluation board is a 6-layer board designed to minimize leakage currents with its guard ring feature. It accepts Subminia-ture Version A （SMA） and Subminiature Version B （SMB） edge mounted connectors on the inputs for easy connection to test equipment or other circuitry.

The ADHV4702-1 data sheet covers the specifications and details of the device operation and application circuit configurations and guidance. Full specifications of the ADHV4702-1 can be found in the ADHV4702-1 data sheet， available from Analog Devices， Inc.， and must be consulted in conjunction with this user guide， especially when powering up the evaluation board for the first time.

For safety， the EVAL-ADHV4702-1CPZ evaluation board is covered top and bottom with acrylic plastic guards to reduce the risk of inadvertent contact with high voltage. Do not operate the board without these guards in place. If the guards must be removed to adjust jumpers or change component values， discon-nect the board from the power supply before removing guards， and replace the guards before powering up again. For full precautions when using this high voltage evaluation board， see the High Voltage Evaluation Board section.

評估板EVAL-ADHV4702-1CPZ主要特性：

Full featured evaluation board for the ADHV4702-1

Single-supply or dual-supply operation

On-board power management circuit generates high voltage

Edge mounted SMA and SMB connector provisions

Easy connection to test equipment and other circuits

Robust thermal management

評估板EVAL-ADHV4702-1CPZ包括：

EVAL-ADHV4702-1CPZ evaluation board

圖2.評估板EVAL-ADHV4702-1CPZ外形圖（正面）

圖3.評估板EVAL-ADHV4702-1CPZ外形圖（背面）

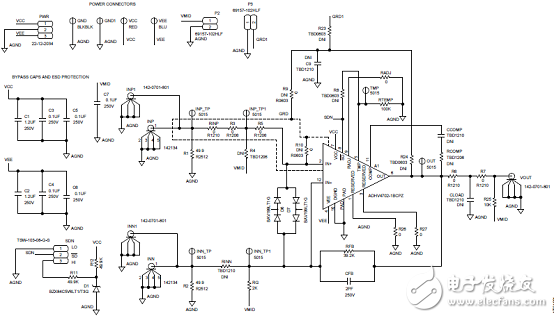

圖4.評估板EVAL-ADHV4702-1CPZ電路圖（1）

圖5.評估板EVAL-ADHV4702-1CPZ電路圖（2）

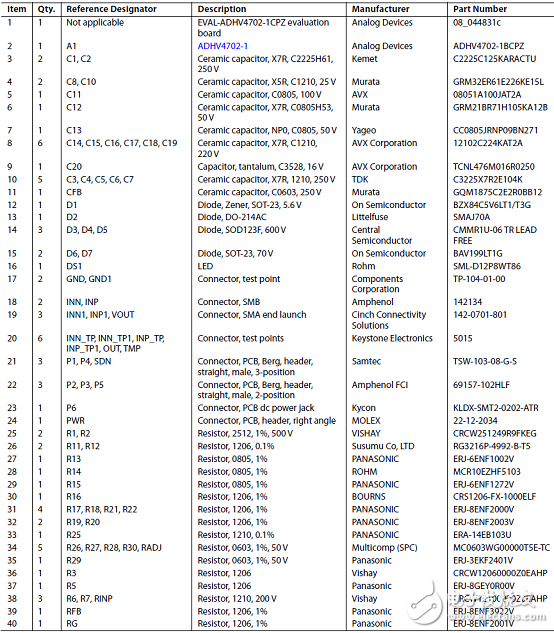

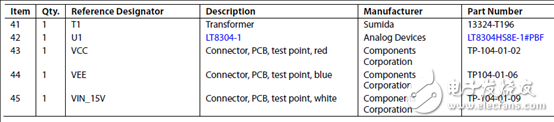

評估板EVAL-ADHV4702-1CPZ材料清單：

詳情請見：

https://www.analog.com/media/en/technical-documentation/data-sheets/ADHV4702-1.pdf

和https://www.analog.com/media/en/technical-documentation/user-guides/EVAL-ADHV4702-1CPZ-UG-1444.pdf
